Manufacturer Part Number

AD9208BBPZ-3000

Description

14-bit analog-to-digital converter (ADC) featuring pipelined architecture and dual inputs. It mounts in a compact 196-BGA-ED (12x12mm) package. Targeted for high-speed and high-resolution data acquisition, communication, and instrumentation systems.

Specifications

Number of Bits: 14

Sampling Rate: 3 GSPS (gigasamples per second)

Number of Inputs: 2 (Differential inputs)

Data Interface: JESD204B (serial output)

Architecture: Pipelined

Number of A/D Converters: 2

Input Type: Differential

Reference Type: Internal

Analog Supply Voltage: 0.95V–1V, 1.85V–1.95V, 2.44V–2.56V

Digital Supply Voltage: 0.95V–1V, 1.85V–1.95V

Operating Temperature: –40°C to +85°C

RoHS3 compliant, REACH unaffected

Moisture Sensitivity Level: 3 (168 Hours)

Device Structure

Mounts with surface mount technology

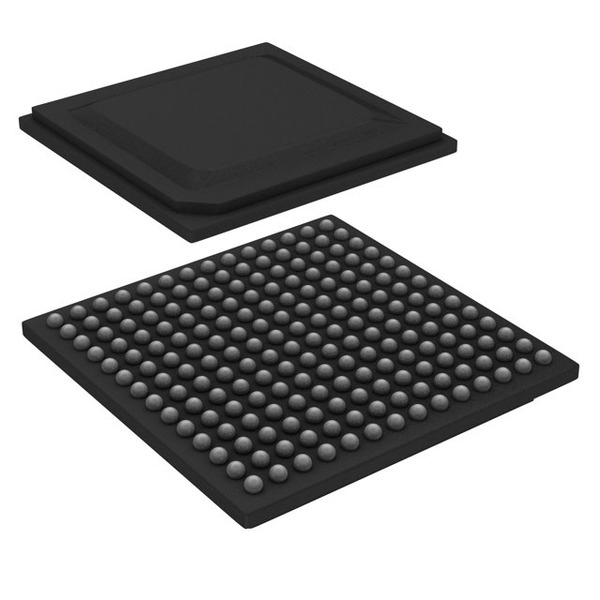

196-lead fine-pitch ball grid array (LFBGA) with exposed pad

Device size: 12mm x 12mm package

Performance Characteristics

High-speed sampling enables real-time, wideband data acquisition up to 3GSPS

Dual-channel operation capable of simultaneous sampling on both channels

Low-voltage operation for reduced power consumption

Pipelined architecture delivers high accuracy and data throughput

JESD204B interface simplifies board design and increases transfer speed

Designed for precision and stability in noisy environments

Application Environments

High-speed data acquisition equipment

Wireless infrastructure, 4G/5G communication base stations

Test and measurement devices

Radar and electronic warfare systems

Instrumentation and scientific research

Medical imaging equipment requiring high-resolution digitizing

Selection Guidelines

Suitable for designs needing high-speed, high-accuracy sampling up to 3GSPS

Choose if dual-channel, differential input, and JESD204B are required

Recommend for space-constrained designs due to compact BGA package

Verify system supply voltages match required analog and digital voltages

Confirm compatibility with high-speed serial data interfaces in your system

Check that the operating temperature meets end-application requirements

Usage Considerations

Moisture sensitivity level is 3; follow industry standard storage and handling guidelines to prevent package damage

Proper PCB design is needed for high-speed analog signals and to support BGA mounting

Match analog and digital supply voltage requirements precisely to ensure correct operation

Shield and route differential signals carefully to minimize noise and signal loss

Use a compatible JESD204B interface on your host device

Ensure adequate cooling/thermal management, especially in dense modules

Potential Equivalent/Replacement Models

There are no exact drop-in equivalents for this specific model. For alternative or equivalent models, consider these options depending on your design requirements and compatibility:

Analog Devices AD9208-3000 (other package types or speed grades)

Texas Instruments ADC12DJ3200 (similar high-speed dual channel ADC)

Texas Instruments ADC12DJ2700

Texas Instruments ADC12QJ1600

If your design needs exact electrical and physical compatibility, or you need more alternatives, please contact the Ariat-Tech sales team for the latest information or application matching.
