| AD8011AN | |
|---|---|
| Part Number | AD8011AN |
| Manufacturer | Analog Devices Inc. |
| Description | IC OPAMP CF LP LDIST 30MA 8DIP |
| Quantity Available | 4766 pcs new original in stock. Request Stock & Quotation |
| Datasheets | 1.AD8011AN.pdf2.AD8011AN.pdf |
| Download | AD8011AN Details PDF |
| AD8011AN Price |
Request Price & Lead Time Online or Email us: Info@ariat-tech.com |
| Technical Information of AD8011AN | |||
|---|---|---|---|
| Manufacturer Part Number | AD8011AN | Category | Integrated Circuits (ICs) |
| Manufacturer | Analog Devices Inc. | Description | IC OPAMP CF LP LDIST 30MA 8DIP |

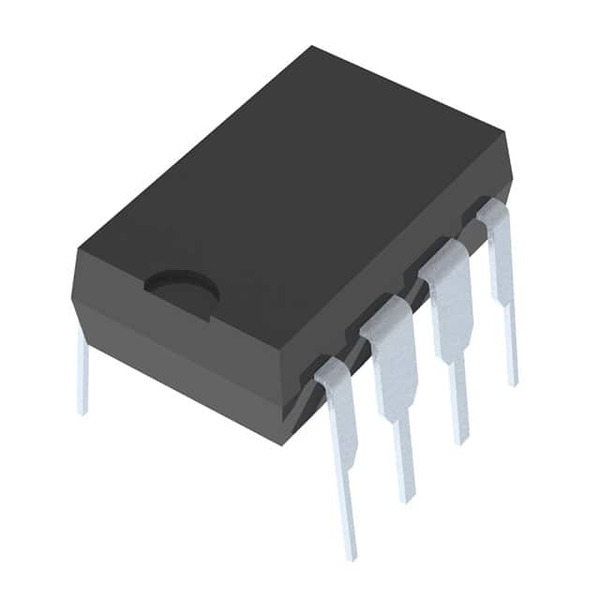

| Package / Case | 8-PDIP | Quantity Available | 4766 pcs |
| Voltage - Supply Span (Min) | 3 V | Voltage - Supply Span (Max) | 12 V |
| Voltage - Input Offset | 2 mV | Supplier Device Package | 8-PDIP |
| Slew Rate | 3500V/µs | Series | - |
| Product Status | Obsolete | Package / Case | 8-DIP (0.300", 7.62mm) |
| Package | Tube | Output Type | - |
| Operating Temperature | -40°C ~ 85°C | Number of Circuits | 1 |
| Mounting Type | Through Hole | Current - Supply | 1.3mA |
| Current - Output / Channel | 30 mA | Current - Input Bias | 5 µA |
| Base Product Number | AD8011 | Amplifier Type | Current Feedback |
| -3db Bandwidth | 400 MHz | ||
| Download | AD8011AN PDF - DE.pdf | ||
Product Model
AD8011AN
Introduction
AD8011AN is a specialized integrated circuit designed for high-speed signal processing applications.
Brand and Manufacturer
Analog Devices Inc. (ADI)
Features
High-speed performance
Low power consumption
Output disable feature
Product Performance
Fast settling time
Wide bandwidth up to 150 MHz
Low distortion levels
Technical Specifications
Supply Voltage: 5 V
Output Current: 50 mA
Operating Temperature: -40 to 85 °C
Dimensions, Shape, and Packaging
Package Type: DIP (Dual In-line Package)
Compact size suitable for dense circuit board layouts
Quality and Reliability
High manufacturing standards
Robust thermal and electrical stability
Product Advantages
Enables high-speed data processing
Improves signal quality and integrity in circuits
Product Competitiveness
Offers better speed and power efficiency compared to similar ICs in the market
Compatibility
Compatible with various digital and analog signal processing applications
Standard Certification and Compliance
Meets standard industry certifications for safety and compliance
Lifespan and Sustainability
Designed for long-term reliability and performance
Capabilities include sustainable operational lifespan under continuous use
Actual Application Fields
Telecommunications
Instrumentation
Video processing systems
Data acquisition systems
Email us: Info@Ariat-Tech.com or RFQ AD8011AN Online.
