| AD7658BSTZ-1-RL | |
|---|---|
| Part Number | AD7658BSTZ-1-RL |
| Manufacturer | Analog Devices Inc. |
| Description | IC ADC 12BIT SAR 64LQFP |
| Quantity Available | 2797 pcs new original in stock. Request Stock & Quotation |
| Datasheets | 1.AD7658BSTZ-1-RL.pdf2.AD7658BSTZ-1-RL.pdf |
| Download | AD7658BSTZ-1-RL Details PDF |
| AD7658BSTZ-1-RL Price |
Request Price & Lead Time Online or Email us: Info@ariat-tech.com |
| Technical Information of AD7658BSTZ-1-RL | |||
|---|---|---|---|
| Manufacturer Part Number | AD7658BSTZ-1-RL | Category | Integrated Circuits (ICs) |
| Manufacturer | Analog Devices Inc. | Description | IC ADC 12BIT SAR 64LQFP |
| Package / Case | 64-LQFP (10x10) | Quantity Available | 2797 pcs |
| Voltage - Supply, Digital | 5V | Voltage - Supply, Analog | 5V |
| Supplier Device Package | 64-LQFP (10x10) | Series | iCMOS® |
| Sampling Rate (Per Second) | 250k | Reference Type | External, Internal |
| Ratio - S/H:ADC | 1:1 | Product Status | Active |
| Package / Case | 64-LQFP | Package | Tape & Reel (TR) |
| Operating Temperature | -40°C ~ 85°C | Number of Inputs | 6 |
| Number of Bits | 12 | Number of A/D Converters | 6 |
| Mounting Type | Surface Mount | Input Type | Single Ended |
| Features | Simultaneous Sampling, True Bipolar | Data Interface | SPI, Parallel, DSP |
| Configuration | S/H-ADC | Base Product Number | AD7658 |
| Architecture | SAR | ||
| Download | AD7658BSTZ-1-RL PDF - DE.pdf | ||
Product Model
AD7658BSTZ-1-RL
Introduction
High-performance 12-bit Analog to Digital Converter with simultaneous sampling
Brand and Manufacturer
Analog Devices
Features
Simultaneous Sampling
True Bipolar Input Range
Single-Ended Inputs
iCMOS® Technology
Product Performance
12-bit Resolution
250 kSPS Sampling Rate
6 Analog Input Channels
Technical Specifications
SPI, Parallel, DSP Data Interfaces
S/H-ADC Configuration
1:1 Sample and Hold to ADC Ratio
6 Independent A/D Converters
SAR (Successive Approximation Register) Architecture
Dimensions, Shape, and Packaging

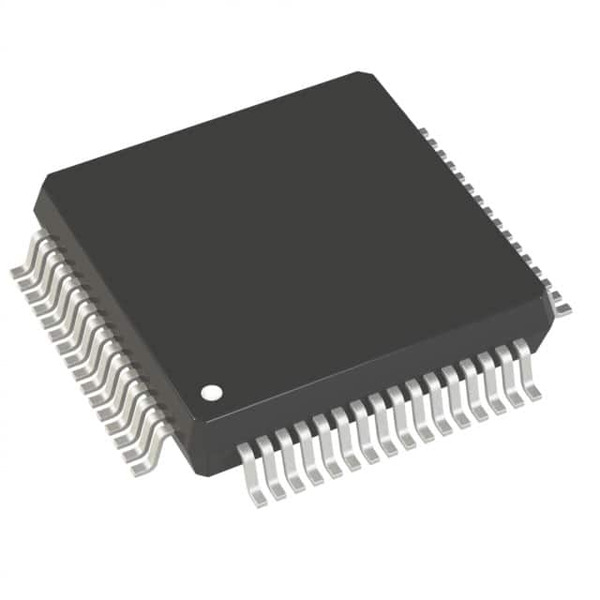

64-LQFP Package
Tape & Reel (TR) Packaging for efficient SMD handling
Supplier Device Package size 64-LQFP (10x10)
Quality and Reliability
Operates from -40°C to 85°C
Robust 64-Lead Quad Flat Package
Product Advantages
High-speed data acquisition capability
Low power consumption
Product Competitiveness
Combines multiple ADCs for channel-dense applications
Provides accurate and quick data conversion for real-time systems
Compatibility
Standard digital interfaces for ease of integration in various systems
Compatible with 5V supply for both analog and digital circuits
Standard Certification and Compliance
Compliant with industry standards for electronic components
Conforms to environmental and safety regulations
Lifespan and Sustainability
Long-term operational reliability
Built to withstand industrial temperature ranges
Actual Application Fields
Industrial process control
Medical imaging
High-speed data acquisition systems
Instrumentation and control systems
Email us: Info@Ariat-Tech.com or RFQ AD7658BSTZ-1-RL Online.
