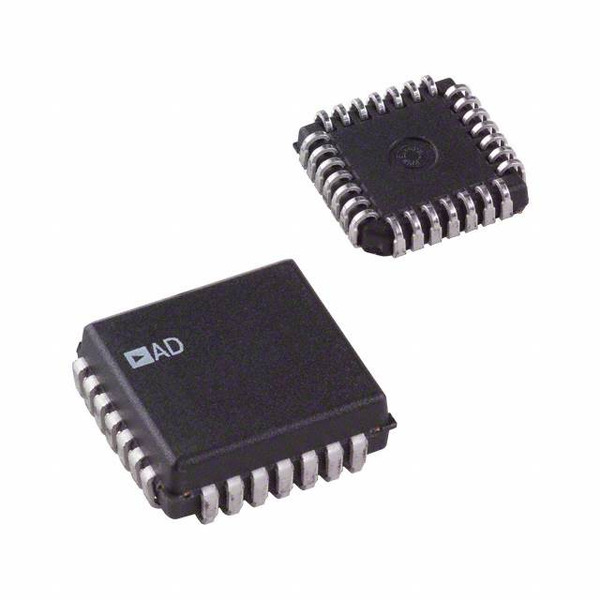

| AD7547JP | |
|---|---|
| Part Number | AD7547JP |
| Manufacturer | Analog Devices Inc. |
| Description | IC DAC 12BIT A-OUT 28PLCC |
| Quantity Available | 24911 pcs new original in stock. Request Stock & Quotation |
| Datasheets | 1.AD7547JP.pdf2.AD7547JP.pdf |
| Download | AD7547JP Details PDF |
| AD7547JP Price |
Request Price & Lead Time Online or Email us: Info@ariat-tech.com |
| Technical Information of AD7547JP | |||
|---|---|---|---|
| Manufacturer Part Number | AD7547JP | Category | Integrated Circuits (ICs) |
| Manufacturer | Analog Devices Inc. | Description | IC DAC 12BIT A-OUT 28PLCC |
| Package / Case | 28-PLCC (11.51x11.51) | Quantity Available | 24911 pcs |
| Voltage - Supply, Digital | 10.8V ~ 16.5V | Voltage - Supply, Analog | 10.8V ~ 16.5V |
| Supplier Device Package | 28-PLCC (11.51x11.51) | Settling Time | 1.5µs |
| Series | - | Reference Type | External |
| Product Status | Obsolete | Package / Case | 28-LCC (J-Lead) |
| Package | Tube | Output Type | Current - Unbuffered |
| Operating Temperature | -40°C ~ 85°C | Number of D/A Converters | 2 |
| Number of Bits | 12 | Mounting Type | Surface Mount |
| INL/DNL (LSB) | ±1 (Max), ±1 (Max) | Differential Output | No |
| Data Interface | Parallel | Base Product Number | AD7547 |
| Architecture | R-2R | ||
| Download | AD7547JP PDF - DE.pdf | ||
Product Model
AD7547JP
Introduction
Dual 12-Bit Digital to Analog Converter
Brand and Manufacturer
Analog Devices
Features
12-Bit Resolution
Dual D/A Converters
R-2R Ladder Architecture
Parallel Data Interface
Product Performance
Settling Time of 1.5µs
Output Type is Current - Unbuffered
External Reference Type
Technical Specifications
Number of Bits: 12
Number of D/A Converters: 2
Voltage - Supply, Analog: 10.8V ~ 16.5V
Voltage - Supply, Digital: 10.8V ~ 16.5V
INL/DNL (LSB): ±1 (Max)
Operating Temperature: -40°C ~ 85°C
Dimensions, Shape, and Packaging
Package / Case: 28-LCC (J-Lead)
Supplier Device Package: 28-PLCC (11.51x11.51)
Mounting Type: Surface Mount
Quality and Reliability
Robust Operating Temperature Range
Product Advantages
High Resolution with Dual DACs
Fast Settling Time
Product Competitiveness
Precision Output for Critical Applications
Compatibility
Works with External Reference
Parallel Data Interface for Ease of Connectivity
Standard Certification and Compliance
Conforms to Industry Standard Specifications
Lifespan and Sustainability
Reliable Performance in Extended Temperature Range
Actual Application Fields
Data Acquisition Systems
Industrial Control Systems
Precision Instrumentation
