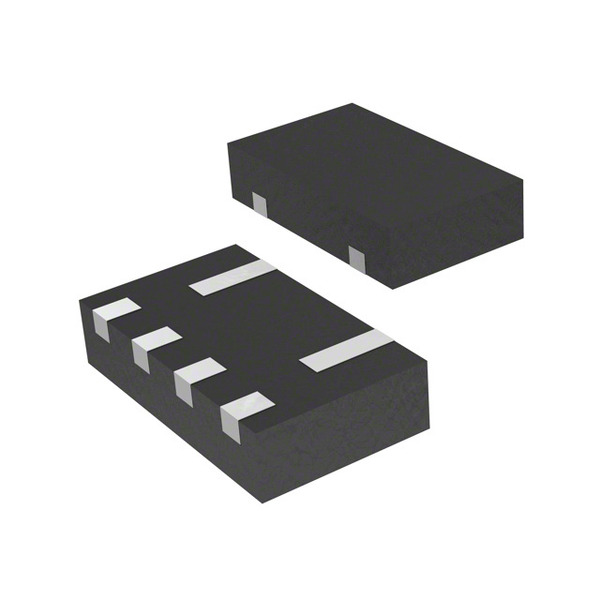

| RCLAMP3324T.TCT | |
|---|---|
| Part Number | RCLAMP3324T.TCT |
| Manufacturer | Semtech Corporation |
| Description | TVS DIODE 3.3V 10.5V SLP1710P4T |
| Quantity Available | 37560 pcs new original in stock. Request Stock & Quotation |
| Datasheets | RCLAMP3324T.TCT.pdf |
| Download | RCLAMP3324T.TCT Details PDF |
| RCLAMP3324T.TCT Price |
Request Price & Lead Time Online or Email us: Info@ariat-tech.com |
| Technical Information of RCLAMP3324T.TCT | |||
|---|---|---|---|
| Manufacturer Part Number | RCLAMP3324T.TCT | Category | Circuit Protection |
| Manufacturer | Semtech | Description | TVS DIODE 3.3V 10.5V SLP1710P4T |
| Package / Case | SLP1710P4T | Quantity Available | 37560 pcs |
| Voltage - Reverse Standoff (Typ) | 3.3V (Max) | Voltage - Clamping (Max) @ Ipp | 10.5V |
| Voltage - Breakdown (Min) | 3.8V | Unidirectional Channels | 4 |
| Type | Steering (Rail to Rail) | Supplier Device Package | SLP1710P4T |
| Series | RailClamp® | Power Line Protection | Yes |
| Power - Peak Pulse | 75W | Package / Case | 6-XFDFN |
| Package | Tape & Reel (TR) | Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Current - Peak Pulse (10/1000µs) | 5A (8/20µs) |
| Capacitance @ Frequency | 0.4pF @ 1MHz | Base Product Number | RCLAMP3324 |
| Applications | HDMI | ||
| Download | RCLAMP3324T.TCT PDF - DE.pdf | ||
Manufacturer Part Number
RCLAMP3324T.TCT
Description
The RCLAMP3324T.TCT is a high-performance transient voltage suppressor (TVS) diode from Semtech's RailClamp® series. It provides effective protection against electrostatic discharge (ESD) and electrical transients in HDMI applications.
Product Packaging
Tape & Reel (TR) packaging
6-XFDFN package / case
Surface mount type
SLP1710P4T supplier device package
Why Choose This Product?
The RCLAMP3324T.TCT offers superior transient voltage protection in a compact surface mount package, making it an ideal solution for space-constrained HDMI applications. Its low capacitance and fast response time ensure minimal signal integrity impact while providing effective circuit protection.
Key Features
Unidirectional 4-channel design
Reverse standoff voltage of 3.3V (max)
Breakdown voltage of 3.8V (min)
Clamping voltage of 10.5V (max) at peak pulse current
Peak pulse current of 5A (8/20μs)
Peak pulse power of 75W
Capacitance of 0.4pF @ 1MHz
Operating temperature range of -40°C to 125°C
Product Compatibility
The RCLAMP3324T.TCT is designed for use in HDMI applications, providing protection against electrical transients and ESD events.
Key Advantages
Compact surface mount package for space-constrained designs
Robust transient voltage protection with low capacitance and fast response time
Suitable for a wide range of operating temperatures
Reliable protection for HDMI interfaces
Product Lifecycle
The RCLAMP3324T.TCT is an active product. Semtech offers a range of alternative RailClamp® series TVS diodes that may be considered as equivalent or alternative models. Customers are recommended to contact Semtech's sales team via the website for more information on product availability and suitable alternatives.
Key Application Areas
HDMI interface protection
Transient voltage suppression in electronic systems
ESD protection for sensitive components
Take Action Now
Customers are recommended to obtain quotes for the RCLAMP3324T.TCT on Semtech's website. For more information or to request a quote, please visit [website link] or contact Semtech's sales team.
Email us: Info@Ariat-Tech.com or RFQ RCLAMP3324T.TCT Online.
