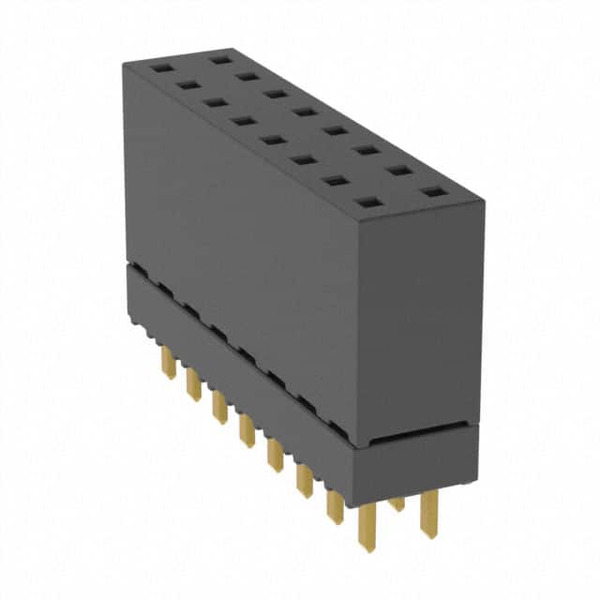

| ESW-108-12-G-D | |
|---|---|
| Part Number | ESW-108-12-G-D |
| Manufacturer | Samtec Inc. |
| Description | CONN SOCKET 16POS 0.1 GOLD PCB |
| Quantity Available | 12111 pcs new original in stock. Request Stock & Quotation |
| Datasheets | 1.ESW-108-12-G-D.pdf2.ESW-108-12-G-D.pdf3.ESW-108-12-G-D.pdf |
| ESW-108-12-G-D Price |
Request Price & Lead Time Online or Email us: Info@ariat-tech.com |
| Technical Information of ESW-108-12-G-D | |||
|---|---|---|---|
| Manufacturer Part Number | ESW-108-12-G-D | Category | Connectors, Interconnects |
| Manufacturer | Samtec, Inc. | Description | CONN SOCKET 16POS 0.1 GOLD PCB |
| Package / Case | Tube | Quantity Available | 12111 pcs |
| Voltage Rating | 550VAC | Termination | Solder |
| Style | Board to Board | Series | ESW |
| Row Spacing - Mating | 0.100' (2.54mm) | Pitch - Mating | 0.100' (2.54mm) |
| Package | Tube | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 16 | Mounting Type | Through Hole |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.435' (11.05mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Current Rating (Amps) | 5.2A per Contact | Contact Type | Forked |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.090' (2.29mm) | Contact Finish Thickness - Post | 3.00µin (0.076µm) |
| Contact Finish Thickness - Mating | 20.0µin (0.51µm) | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Elevated Socket |
| Base Product Number | ESW-108 | Applications | - |
Email us: Info@Ariat-Tech.com or RFQ ESW-108-12-G-D Online.
| ESW-108-12-G-D Stock | ESW-108-12-G-D Price | ESW-108-12-G-D Electronics | |||
| ESW-108-12-G-D Components | ESW-108-12-G-D Inventory | ESW-108-12-G-D Digikey | |||
| Supplier ESW-108-12-G-D | Order ESW-108-12-G-D Online | Inquiry ESW-108-12-G-D | |||
| ESW-108-12-G-D Image | ESW-108-12-G-D Picture | ESW-108-12-G-D PDF | |||
| ESW-108-12-G-D Datasheet | Download ESW-108-12-G-D Datasheet | Manufacturer Samtec, Inc. | |||
