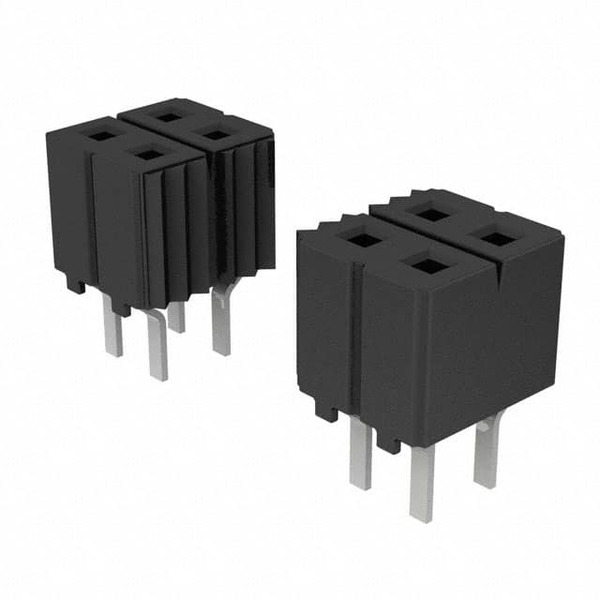

| CES-150-01-S-D | |
|---|---|
| Part Number | CES-150-01-S-D |
| Manufacturer | Samtec Inc. |
| Description | CONN RCPT 100POS 0.1 GOLD PCB |
| Quantity Available | 2346 pcs new original in stock. Request Stock & Quotation |
| Datasheets | 1.CES-150-01-S-D.pdf2.CES-150-01-S-D.pdf3.CES-150-01-S-D.pdf4.CES-150-01-S-D.pdf |
| CES-150-01-S-D Price |
Request Price & Lead Time Online or Email us: Info@ariat-tech.com |
| Technical Information of CES-150-01-S-D | |||
|---|---|---|---|
| Manufacturer Part Number | CES-150-01-S-D | Category | Connectors, Interconnects |
| Manufacturer | Samtec, Inc. | Description | CONN RCPT 100POS 0.1 GOLD PCB |
| Package / Case | Tube | Quantity Available | 2346 pcs |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board | Series | CES |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Package | Tube | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 100 | Mounting Type | Through Hole |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Insulation Material | Polybutylene Terephthalate (PBT) | Insulation Height | 0.200" (5.08mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Current Rating (Amps) | - | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.128" (3.25mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Base Product Number | CES-150 | Applications | - |
Email us: Info@Ariat-Tech.com or RFQ CES-150-01-S-D Online.
| CES-150-01-S-D Stock | CES-150-01-S-D Price | CES-150-01-S-D Electronics | |||
| CES-150-01-S-D Components | CES-150-01-S-D Inventory | CES-150-01-S-D Digikey | |||
| Supplier CES-150-01-S-D | Order CES-150-01-S-D Online | Inquiry CES-150-01-S-D | |||
| CES-150-01-S-D Image | CES-150-01-S-D Picture | CES-150-01-S-D PDF | |||
| CES-150-01-S-D Datasheet | Download CES-150-01-S-D Datasheet | Manufacturer Samtec, Inc. | |||
