| MPC8306SVMACDCA | |
|---|---|
| Part Number | MPC8306SVMACDCA |
| Manufacturer | NXP USA Inc. |
| Description | IC MPU MPC83XX 200MHZ 369BGA |
| Quantity Available | 3400 pcs new original in stock. Request Stock & Quotation |
| Datasheets | 1.MPC8306SVMACDCA.pdf2.MPC8306SVMACDCA.pdf3.MPC8306SVMACDCA.pdf4.MPC8306SVMACDCA.pdf5.MPC8306SVMACDCA.pdf6.MPC8306SVMACDCA.pdf7.MPC8306SVMACDCA.pdf8.MPC8306SVMACDCA.pdf |
| Download | MPC8306SVMACDCA Details PDF |
| MPC8306SVMACDCA Price |
Request Price & Lead Time Online or Email us: Info@ariat-tech.com |
| Technical Information of MPC8306SVMACDCA | |||
|---|---|---|---|
| Manufacturer Part Number | MPC8306SVMACDCA | Category | Integrated Circuits (ICs) |
| Manufacturer | NXP USA Inc. | Description | IC MPU MPC83XX 200MHZ 369BGA |

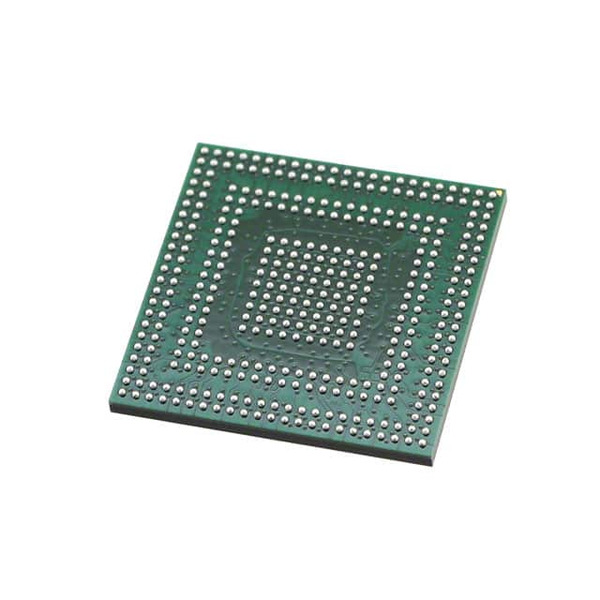

| Package / Case | 369-PBGA (19x19) | Quantity Available | 3400 pcs |
| Voltage - I/O | 1.8V, 3.3V | USB | USB 2.0 (1) |
| Supplier Device Package | 369-PBGA (19x19) | Speed | 200MHz |
| Series | MPC83xx | Security Features | - |
| SATA | - | RAM Controllers | DDR2 |
| Product Status | Obsolete | Package / Case | 369-LFBGA |
| Package | Tray | Operating Temperature | 0°C ~ 105°C (TA) |
| Number of Cores/Bus Width | 1 Core, 32-Bit | Mounting Type | Surface Mount |
| Graphics Acceleration | No | Ethernet | 10/100Mbps (3) |
| Display & Interface Controllers | - | Core Processor | PowerPC e300c3 |
| Co-Processors/DSP | Communications; QUICC Engine | Base Product Number | MPC8306 |
| Additional Interfaces | DUART, I²C, SPI, TDM | ||
| Download | MPC8306SVMACDCA PDF - DE.pdf | ||
Product Model
MPC8306SVMACDCA
Introduction
An embedded microprocessor from the MPC83xx series by NXP Semiconductors
Brand and Manufacturer
NXP Semiconductors
Features
PowerPC e300c3 Core Processor
1 Core, 32-Bit Bus Width
Communications QUICC Engine Co-Processor
Supports DDR2 RAM Controllers
3 Ethernet ports with 10/100Mbps speed
Single USB 2.0 interface
DUART, I2C, SPI, TDM Additional Interfaces
Product Performance
200MHz Operating Speed
Efficient Handling of Communication Protocols
Support for Integrated Peripherals
Technical Specifications
Core Processor: PowerPC e300c3
Speed: 200MHz
Ethernet: 10/100Mbps (3 ports)
USB: USB 2.0 (1 port)
Voltage - I/O: 1.8V, 3.3V
Dimensions, Shape, and Packaging
Packaging: Unspecified
Product Shape: Rectangular
Mounting Type: Surface Mount
Package/Case: 369-LFBGA
Supplier Device Package: 369-PBGA (19x19)
Quality and Reliability
Operating Temperature Range from 0°C to 105°C
Product Advantages
Tailored for Communications and Networking Applications
Product Competitiveness
Built for high-performance embedded processing
One of the few processors with built-in Communication QUICC Engine
Compatibility
Compatible with DDR2 memory interfaces
Multi-voltage I/O support for compatibility with different peripherals
Standard Certification and Compliance
Compliance with standard industry certifications for embedded microprocessors (Details would be provided in official datasheets or company standards)
Lifespan and Sustainability
Obsolete Product Status suggests limited lifespan and sustainability
Actual Application Fields
Networking Equipment
Embedded Control Systems
Industrial Automation
