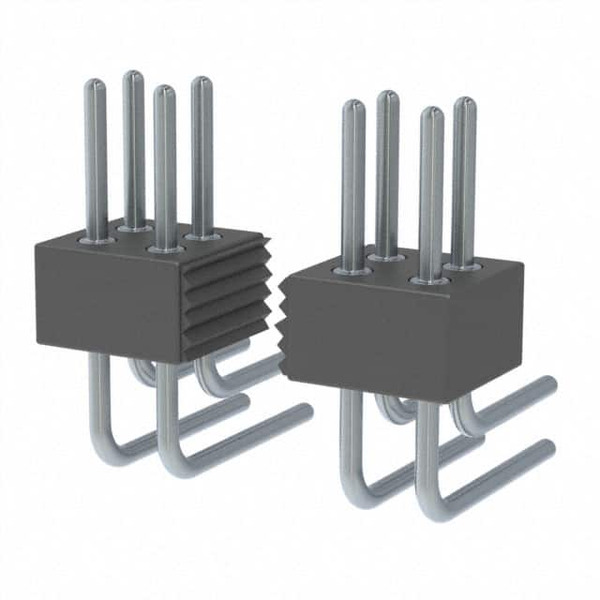

| 852-90-022-20-001000 | |
|---|---|
| Part Number | 852-90-022-20-001000 |
| Manufacturer | Mill-Max Manufacturing Corp. |
| Description | CONN HEADER R/A 22POS 1.27MM |
| Quantity Available | 5855 pcs new original in stock. Request Stock & Quotation |
| Datasheets | |
| 852-90-022-20-001000 Price |
Request Price & Lead Time Online or Email us: Info@ariat-tech.com |
| Technical Information of 852-90-022-20-001000 | |||
|---|---|---|---|
| Manufacturer Part Number | 852-90-022-20-001000 | Category | Connectors, Interconnects |
| Manufacturer | Mill-Max | Description | CONN HEADER R/A 22POS 1.27MM |
| Package / Case | Bulk | Quantity Available | 5855 pcs |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board | Shrouding | Unshrouded |
| Series | 852 | Row Spacing - Mating | 0.050" (1.27mm) |
| Pitch - Mating | 0.050" (1.27mm) | Package | Bulk |
| Overall Contact Length | - | Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 22 | Mounting Type | Through Hole, Right Angle |
| Material Flammability Rating | - | Mated Stacking Heights | - |
| Insulation Material | Polyamide (PA46), Nylon 4/6 | Insulation Height | 0.120" (3.05mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Current Rating (Amps) | - | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Brass Alloy |
| Contact Length - Post | 0.126" (3.20mm) | Contact Length - Mating | 0.118" (3.00mm) |
| Contact Finish Thickness - Post | 200.0µin (5.08µm) | Contact Finish Thickness - Mating | 200.0µin (5.08µm) |
| Contact Finish - Post | Tin-Lead | Contact Finish - Mating | Tin-Lead |
| Connector Type | Header | Base Product Number | 852-90 |
| Applications | - |
Email us: Info@Ariat-Tech.com or RFQ 852-90-022-20-001000 Online.
