Manufacturer Part Number

APT100GF60JU3

Description

This is an IGBT (Insulated Gate Bipolar Transistor) module for power electronics applications. The device can handle a collector-emitter voltage of 600 V and supports a continuous collector current of up to 120 A, with a maximum power dissipation of 416 W. It comes in a robust SOT-227 ISOTOP package with a chassis-mount design for efficient thermal management. The device is no longer in production (Obsolete), but new original stock is still available.

Specifications

Maximum Collector-Emitter Breakdown Voltage: 600 V

Maximum Collector Current: 120 A

Maximum Power Dissipation: 416 W

Collector Cutoff Current: 100 µA

Maximum Collector-Emitter Saturation Voltage (Vce(on)): 2.5V at 15V gate, 100A

Input Capacitance (Cies): 4.3 nF at 25V

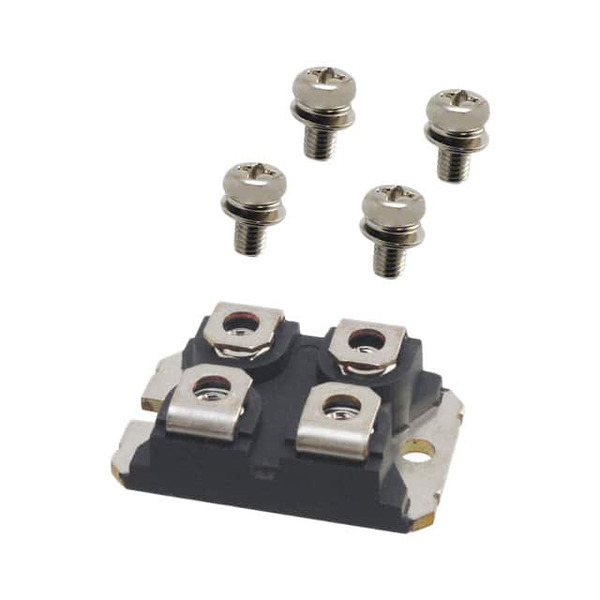

Package: SOT-227 (ISOTOP)

Configuration: Single NPT IGBT

NTC Thermistor: Not included

Mounting: Chassis-mount

Moisture Sensitivity Level: 1 (unlimited shelf life)

Device Structure

The device consists of a single NPT (Non-Punch-Through) IGBT die housed in a SOT-227 (ISOTOP) standard chassis-mount module. The structure allows for strong current handling and efficient heat dissipation due to the large case size and mounting features. No built-in NTC thermistor.

Performance Characteristics

Fast switching with low conduction losses

High current capability (up to 120 A)

High efficiency at up to 416 W power dissipation

Low Vce(on) at the specified gate-emitter and collector current

Standard gate input configuration

Suited for high-reliability industrial environments

Application Environments

Industrial motor drives

Power inverters and converters

UPS (Uninterruptible Power Supplies)

Renewable energy systems (such as solar or wind inverters)

High-power switching applications

Electric vehicle inverters (legacy systems)

Selection Guidelines

Choose if you need an IGBT module that withstands up to 600 V and currents up to 120 A

Suitable for chassis-mounted applications where space and heat management are important

Ensure compatibility with SOT-227 package

Ideal replacement for other single IGBT modules with similar power and voltage ratings

Not recommended for new designs, as the product is obsolete

Usage Considerations

Ensure proper mounting to a heat sink for effective cooling

Do not exceed the absolute maximum ratings for voltage, current, or power dissipation

Consider external NTC thermistor for temperature monitoring, as none is included

Observe standard precautions for handling power semiconductors to prevent electrostatic or thermal stress

Obsolescence means limited future support—verify stock availability and consider lifetime requirements

Potential Equivalent/Replacement Models

No direct manufacturer-recommended equivalents are listed for the APT100GF60JU3. However, similar NPT IGBT modules rated for 600 V, 120 A in SOT-227 package from other manufacturers could serve as potential alternatives. Example alternative part numbers may include:

Infineon FF100R12RT4

Fuji Electric 1MBI100S-120

Semikron SKM100GB123D

IXYS IXGH100N60B

Carefully compare the datasheets and thermal, electrical requirements before substitution. If you need exact equivalents or further advice, please contact the Ariat-Tech sales team for detailed support and up-to-date inventory options.
