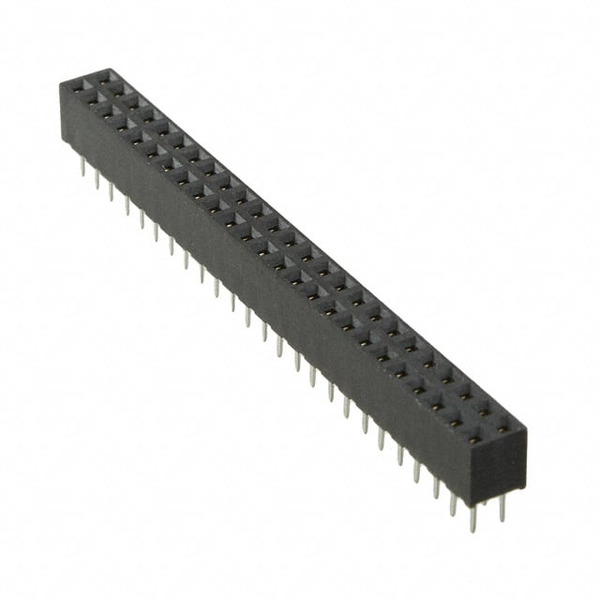

| M22-7142542 | |
|---|---|
| Part Number | M22-7142542 |
| Manufacturer | Harwin Inc. |
| Description | CONN RCPT 50POS 0.079 GOLD PCB |
| Quantity Available | 7475 pcs new original in stock. Request Stock & Quotation |
| Datasheets | 1.M22-7142542.pdf2.M22-7142542.pdf3.M22-7142542.pdf4.M22-7142542.pdf |
| M22-7142542 Price |
Request Price & Lead Time Online or Email us: Info@ariat-tech.com |
| Technical Information of M22-7142542 | |||
|---|---|---|---|
| Manufacturer Part Number | M22-7142542 | Category | Connectors, Interconnects |
| Manufacturer | Harwin | Description | CONN RCPT 50POS 0.079 GOLD PCB |
| Package / Case | Bulk | Quantity Available | 7475 pcs |
| Voltage Rating | 500VAC | Termination | Solder |
| Style | Board to Board or Cable | Series | M22 |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Package | Bulk | Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 50 | Mounting Type | Through Hole |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | 5.8mm, 6.55mm, 6.8mm |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.173" (4.40mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Current Rating (Amps) | 2A | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.094" (2.40mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Base Product Number | M22-714 | Applications | General Purpose, Industrial, Telecommunications |
Email us: Info@Ariat-Tech.com or RFQ M22-7142542 Online.
