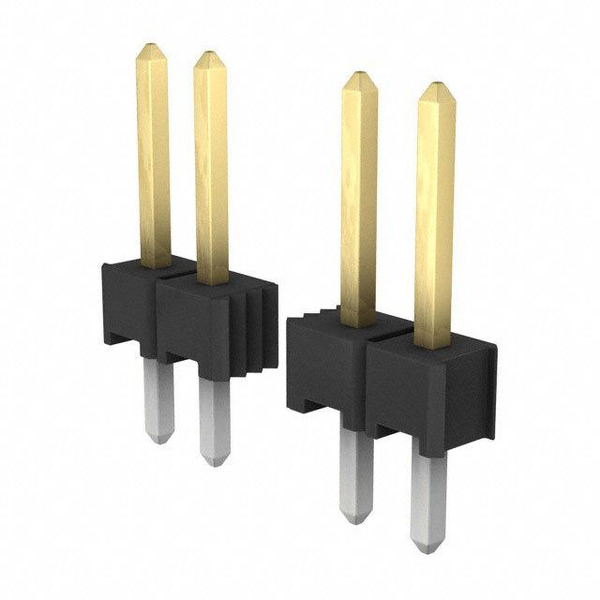

| 5-146280-9 | |
|---|---|
| Part Number | 5-146280-9 |
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | 09 MODII HDR SRST B/A .100CL |
| Quantity Available | 25093 pcs new original in stock. Request Stock & Quotation |
| Datasheets | |
| 5-146280-9 Price |
Request Price & Lead Time Online or Email us: Info@ariat-tech.com |
| Technical Information of 5-146280-9 | |||
|---|---|---|---|
| Manufacturer Part Number | 5-146280-9 | Category | Connectors, Interconnects |
| Manufacturer | Agastat Relays / TE Connectivity | Description | 09 MODII HDR SRST B/A .100CL |
| Package / Case | Bulk | Quantity Available | 25093 pcs |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board or Cable | Standard Package | 200 |
| Shrouding | Unshrouded | Series | AMPMODU Mod II |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Part Status | Active | Packaging | Bulk |
| Overall Contact Length | 0.440" (11.18mm) | Other Names | 5-146280-9-ND A128855 |
| Operating Temperature | -65°C ~ 105°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 9 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.090" (2.29mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 9 position 0.100" (2.54mm) | Current Rating | 3A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | 0.120" (3.05mm) |
| Contact Length - Mating | 0.230" (5.84mm) | Contact Finish Thickness - Post | 100.0µin (2.54µm) |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Header, Breakaway |
| Applications | - |
