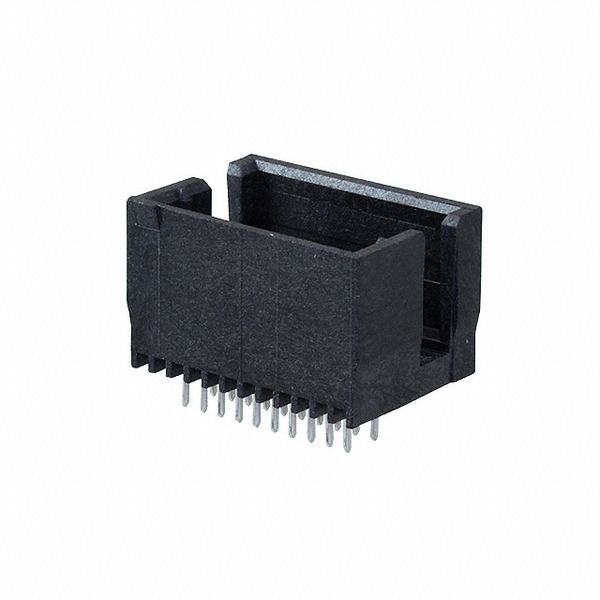

| 104076-1 | |
|---|---|
| Part Number | 104076-1 |
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADER .050 20POS VERT SHRD |
| Quantity Available | 12078 pcs new original in stock. Request Stock & Quotation |
| Datasheets | |
| 104076-1 Price |
Request Price & Lead Time Online or Email us: Info@ariat-tech.com |
| Technical Information of 104076-1 | |||
|---|---|---|---|
| Manufacturer Part Number | 104076-1 | Category | Connectors, Interconnects |
| Manufacturer | Agastat Relays / TE Connectivity | Description | CONN HEADER .050 20POS VERT SHRD |
| Package / Case | Tube | Quantity Available | 12078 pcs |
| Voltage Rating | 30VAC | Termination | Solder |
| Style | Board to Board or Cable | Standard Package | 31 |
| Shrouding | Shrouded - 3 Wall | Series | AMPMODU System 50 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.050" (1.27mm) |
| Part Status | Active | Packaging | Tube |
| Overall Contact Length | - | Other Names | 104076-1-ND A114689 |
| Operating Temperature | -65°C ~ 105°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 20 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 5 Weeks | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Insulation Material | Thermoplastic | Insulation Height | 0.390" (9.91mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Card Slot | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 20 position 0.050" (1.27mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Circular |
| Contact Material | Copper Alloy | Contact Length - Post | 0.100" (2.54mm) |
| Contact Length - Mating | 0.125" (3.18mm) | Contact Finish Thickness - Post | 150.0µin (3.81µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Tin-Lead |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
