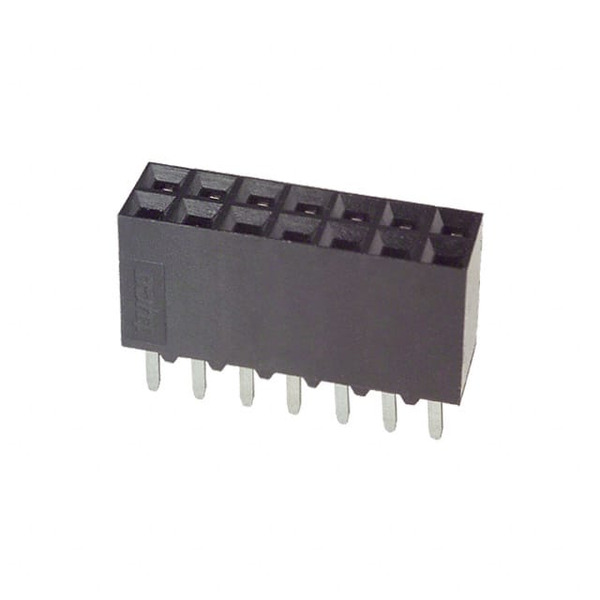

| 534206-7 | |
|---|---|
| Part Number | 534206-7 |
| Manufacturer | TE Connectivity AMP Connectors |
| Description | CONN RCPT 14POS 0.1 GOLD PCB |
| Quantity Available | 34006 pcs new original in stock. Request Stock & Quotation |
| Datasheets | 1.534206-7.pdf2.534206-7.pdf |
| 534206-7 Price |
Request Price & Lead Time Online or Email us: Info@ariat-tech.com |
| Technical Information of 534206-7 | |||
|---|---|---|---|
| Manufacturer Part Number | 534206-7 | Category | Connectors, Interconnects |
| Manufacturer | AMP Connectors/TE Connectivity | Description | CONN RCPT 14POS 0.1 GOLD PCB |
| Package / Case | Tube | Quantity Available | 34006 pcs |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board or Cable | Series | AMPMODU Mod II |
| Row Spacing - Mating | 0.100' (2.54mm) | Pitch - Mating | 0.100' (2.54mm) |
| Package | Tube | Operating Temperature | -65°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 14 | Mounting Type | Through Hole |
| Material Flammability Rating | - | Mated Stacking Heights | - |
| Insulation Material | Polyester, Glass Filled | Insulation Height | 0.320' (8.13mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Current Rating (Amps) | 2A | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.115' (2.92mm) | Contact Finish Thickness - Post | 150.0µin (3.81µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Tin-Lead |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Base Product Number | 534206 | Applications | - |
Email us: Info@Ariat-Tech.com or RFQ 534206-7 Online.
