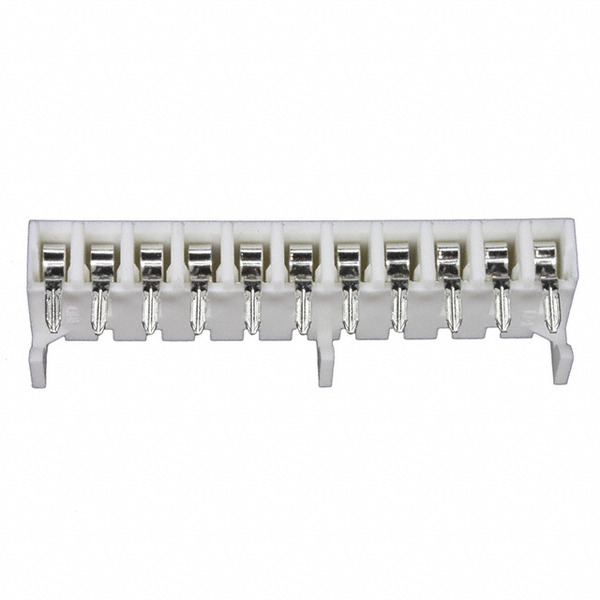

| 09-48-1114 | |
|---|---|
| Part Number | 09-48-1114 |
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN RECEPT 11POS .156 R/A PCB |
| Quantity Available | 23482 pcs new original in stock. Request Stock & Quotation |
| Datasheets | 09-48-1114.pdf |
| 09-48-1114 Price |
Request Price & Lead Time Online or Email us: Info@ariat-tech.com |
| Technical Information of 09-48-1114 | |||
|---|---|---|---|
| Manufacturer Part Number | 09-48-1114 | Category | Connectors, Interconnects |
| Manufacturer | Affinity Medical Technologies - Molex | Description | CONN RECEPT 11POS .156 R/A PCB |
| Package / Case | Quantity Available | 23482 pcs | |
| Voltage Rating | 600V | Termination | Solder |
| Style | Board to Board or Cable | Standard Package | 1 |
| Series | KK 41815 | Row Spacing - Mating | - |
| Pitch - Mating | 0.156" (3.96mm) | Part Status | Active |
| Packaging | Tray | Other Names | 0009-48-1114 0009-48-1114-E 0009481114 0009481114-E 09-48-1114-E 09481114 09481114-E 9481114 A-41815-0011 WM13308 |
| Operating Temperature | -40°C ~ 105°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 11 |
| Mounting Type | Board Edge, Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyester | Insulation Height | 0.308" (7.82mm) |
| Insulation Color | Natural | Ingress Protection | - |
| Features | Board Hooks | Fastening Type | Locking Ramp |
| Detailed Description | 11 Position Receptacle Connector 0.156" (3.96mm) Board Edge, Through Hole, Right Angle Tin | Current Rating | 5A |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.145" (3.68mm) |
| Contact Finish Thickness - Post | 60.0µin (1.52µm) | Contact Finish Thickness - Mating | 60.0µin (1.52µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Receptacle | Applications | Automotive, General Purpose, Medical, Telecommunications |
09-48-1114 are New and Original in Stock, Find 09-48-1114 electronics components stock, Datasheet, Inventory and Price at Ariat-Tech.com Online, Order 09-48-1114 Affinity Medical Technologies - a Molex company with warrantied and confidence from Ariat Technology Limitd. Ship via DHL/FedEx/UPS. Payment with Wire Transfer or PayPal is OK.
Email us: Info@Ariat-Tech.com or RFQ 09-48-1114 Online.
Email us: Info@Ariat-Tech.com or RFQ 09-48-1114 Online.
| 09-48-1114 Stock | 09-48-1114 Price | 09-48-1114 Electronics | |||
| 09-48-1114 Components | 09-48-1114 Inventory | 09-48-1114 Digikey | |||
| Supplier 09-48-1114 | Order 09-48-1114 Online | Inquiry 09-48-1114 | |||
| 09-48-1114 Image | 09-48-1114 Picture | 09-48-1114 PDF | |||
| 09-48-1114 Datasheet | Download 09-48-1114 Datasheet | Manufacturer Affinity Medical Technologies - Molex | |||
