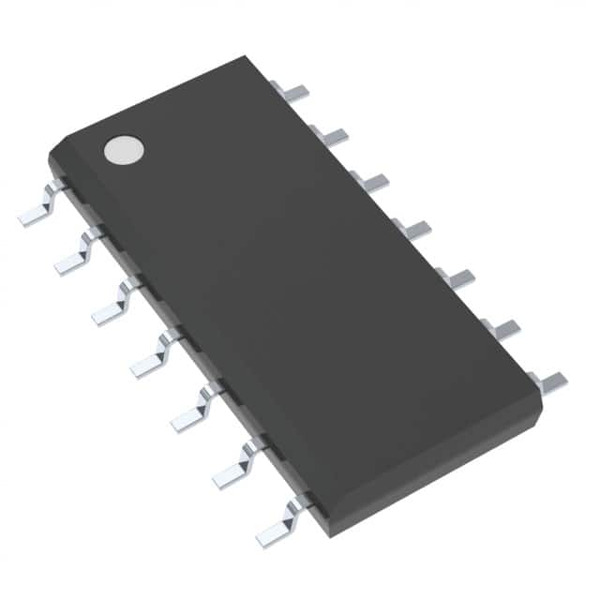

| SN74ACT86DR | |
|---|---|
| Part Number | SN74ACT86DR |
| Manufacturer | Texas Instruments |
| Description | IC GATE XOR 4CH 2-INP 14SOIC |
| Quantity Available | 122260 pcs new original in stock. Request Stock & Quotation |
| Datasheets | SN74ACT86DR.pdf |
| Download | SN74ACT86DR Details PDF |
| SN74ACT86DR Price |
Request Price & Lead Time Online or Email us: Info@ariat-tech.com |
| Technical Information of SN74ACT86DR | |||
|---|---|---|---|
| Manufacturer Part Number | SN74ACT86DR | Category | Integrated Circuits (ICs) |
| Manufacturer | Texas Instruments | Description | IC GATE XOR 4CH 2-INP 14SOIC |
| Package / Case | 14-SOIC | Quantity Available | 122260 pcs |
| Voltage - Supply | 4.5V ~ 5.5V | Supplier Device Package | 14-SOIC |
| Series | 74ACT | Product Status | Active |
| Package / Case | 14-SOIC (0.154', 3.90mm Width) | Package | Tape & Reel (TR) |
| Operating Temperature | -40°C ~ 85°C | Number of Inputs | 2 |
| Number of Circuits | 4 | Mounting Type | Surface Mount |
| Max Propagation Delay @ V, Max CL | 9.5ns @ 5V, 50pF | Logic Type | XOR (Exclusive OR) |
| Input Logic Level - Low | 0.8V | Input Logic Level - High | 2V |
| Features | - | Current - Quiescent (Max) | 4 µA |
| Current - Output High, Low | 24mA, 24mA | Base Product Number | 74ACT86 |
| Download | SN74ACT86DR PDF - DE.pdfSN74ACT86DR PDF - FR.pdfSN74ACT86DR PDF - ES.pdfSN74ACT86DR PDF - IT.pdfSN74ACT86DR PDF - KR.pdf | ||
Product Model
SN74ACT86DR
Introduction
XOR Logic Gate Integrated Circuit
Brand and Manufacturer
Texas Instruments
Features
Quadruple 2-Input Exclusive OR Gates
Designed for 4.5V to 5.5V VCC Operation
Product Performance
Low Power Consumption
High Output Drive: 24mA
Fast Propagation Delay: 9.5ns
Technical Specifications
Logic Type: XOR Gate
Logic Function: Exclusive OR
Number of Circuits: 4
Number of Inputs per Gate: 2
Dimensions, Shape, and Packaging
Package / Case: 14-SOIC
Mounting Type: Surface Mount
Packaging: Tape & Reel (TR)
Quality and Reliability
Highly Reliable
Designed for Commercial and Industrial Applications
Product Advantages
High-Speed Operation
Compatible with TTL Levels
Product Competitiveness
Optimized for Larger Logic Functions
Cost-Effective Solution for Digital Logic
Compatibility
TTL Compatible
Standard Certification and Compliance
Compliant with Industry Standards
Lifespan and Sustainability
Robust Operating Temperature Range: -40°C to 85°C
Actual Application Fields
Consumer Electronics
Communication Equipment
Data Processing Systems
Industrial Control Systems
