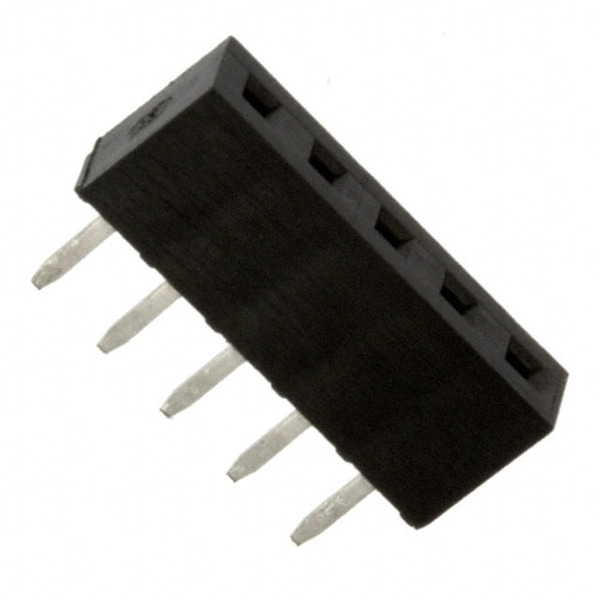

| 950505-6102-AR | |
|---|---|
| Part Number | 950505-6102-AR |
| Manufacturer | 3M |
| Description | CONN RCPT 5POS 0.079 GOLD PCB |
| Quantity Available | 2552 pcs new original in stock. Request Stock & Quotation |
| Datasheets | 1.950505-6102-AR.pdf2.950505-6102-AR.pdf |
| 950505-6102-AR Price |
Request Price & Lead Time Online or Email us: Info@ariat-tech.com |
| Technical Information of 950505-6102-AR | |||
|---|---|---|---|
| Manufacturer Part Number | 950505-6102-AR | Category | Connectors, Interconnects |
| Manufacturer | 3M | Description | CONN RCPT 5POS 0.079 GOLD PCB |
| Package / Case | Tube | Quantity Available | 2552 pcs |
| Voltage Rating | 1000V | Termination | Solder |
| Style | Board to Board | Series | 950 |
| Row Spacing - Mating | - | Pitch - Mating | 0.079' (2.00mm) |
| Package | Tube | Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 5 | Mounting Type | Through Hole |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Insulation Material | Thermoplastic | Insulation Height | 0.169' (4.30mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Current Rating (Amps) | 1A | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.098' (2.50mm) | Contact Finish Thickness - Post | 40.0µin (1.02µm) |
| Contact Finish Thickness - Mating | Flash | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Base Product Number | 950505 | Applications | - |
Email us: Info@Ariat-Tech.com or RFQ 950505-6102-AR Online.
| 950505-6102-AR Stock | 950505-6102-AR Price | 950505-6102-AR Electronics | |||
| 950505-6102-AR Components | 950505-6102-AR Inventory | 950505-6102-AR Digikey | |||
| Supplier 950505-6102-AR | Order 950505-6102-AR Online | Inquiry 950505-6102-AR | |||
| 950505-6102-AR Image | 950505-6102-AR Picture | 950505-6102-AR PDF | |||
| 950505-6102-AR Datasheet | Download 950505-6102-AR Datasheet | Manufacturer 3M | |||
